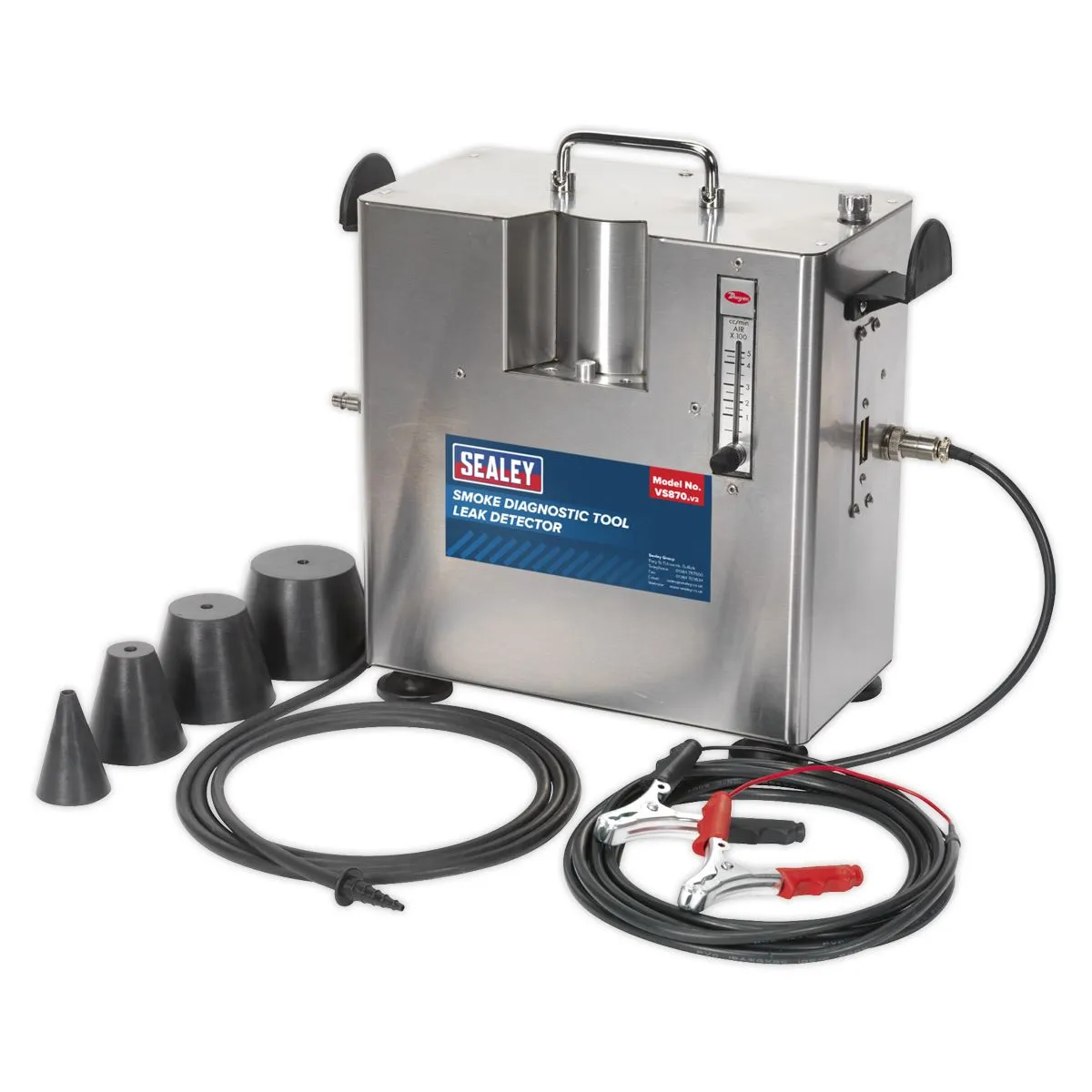

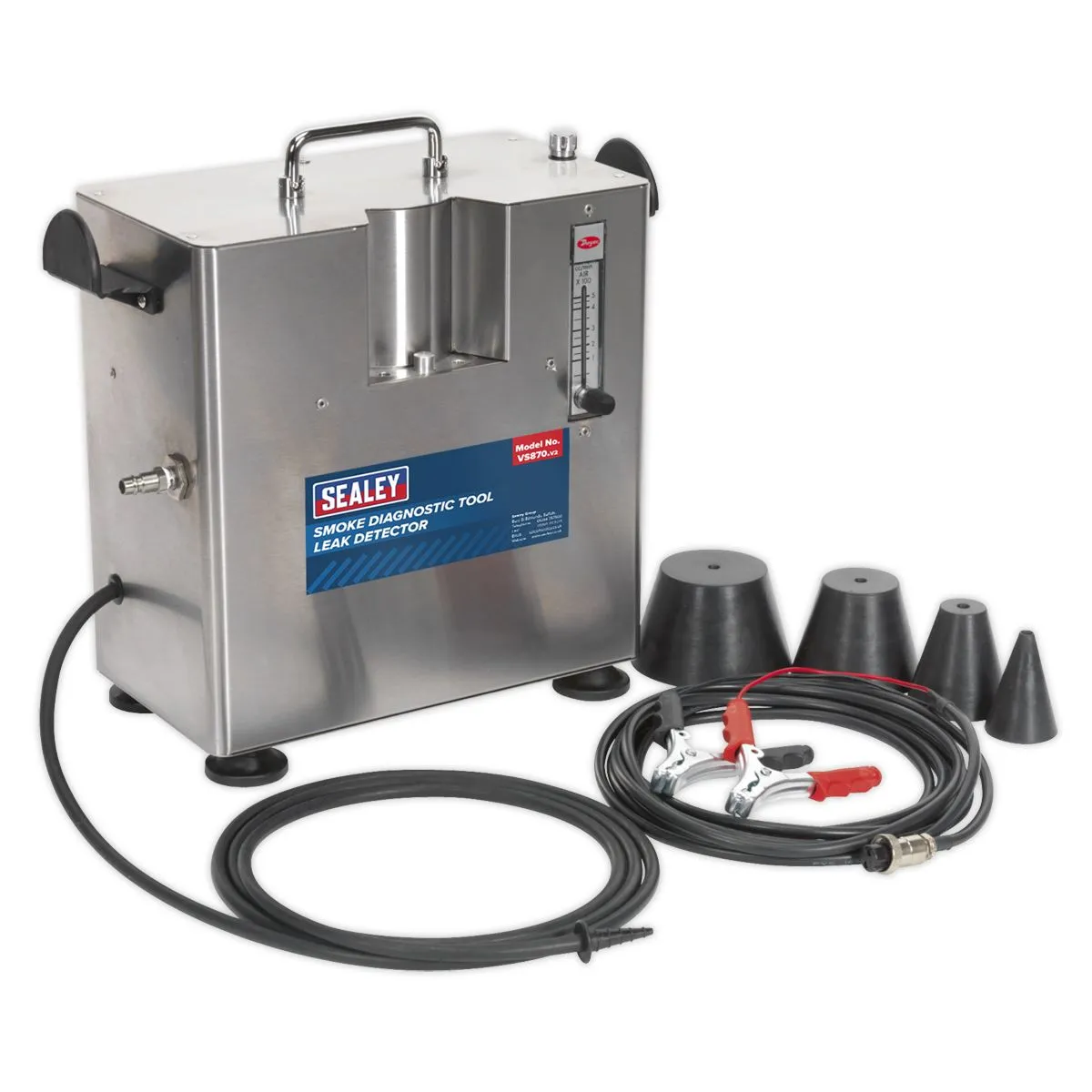

Sealey Smoke Diagnostic Tool - Leak Detector
PRECISE - Allows the technician to pinpoint all manner of system leaks including the air intake, cooling, evaporation, fuel, exhaust and vacuum systems.
TIME-SAVING - Fast and simple-to-use, maximising earning potential.
SIMPLE CONTROLS - Features single button operation, flow control valve and auto-power-off.
SAFE - Uses mineral oil and workshop air to generate smoke at low pressure while connected to a vehicle.
SIMPLE - System is clean and quick to use and connects to a 12V vehicle battery.
ADAPTABLE - Rubber Cones Sizes: Ø10-45, 30-65, 50-85, 70-100mm.
INCLUDES - Supplied with four different sizes of blanking cones.
PLEASE NOTE - Mineral oil not included.
Specification:
- Model No VS870
- Brand: Sealey
- Hose Length: 2600mm
- Machine Weight: 7.2kg
- Maximum Input Pressure: 14psi(1bar)
- Nett Weight: 6.97kg
- Oil Reservoir Capacity: 75ml
- Rubber Cones Sizes: Ø10-45, 30-65, 50-85, 70-100mm
Catalogue Page: Page 438
Downloadable Files:
- Instructions:
- Parts Diagram:
