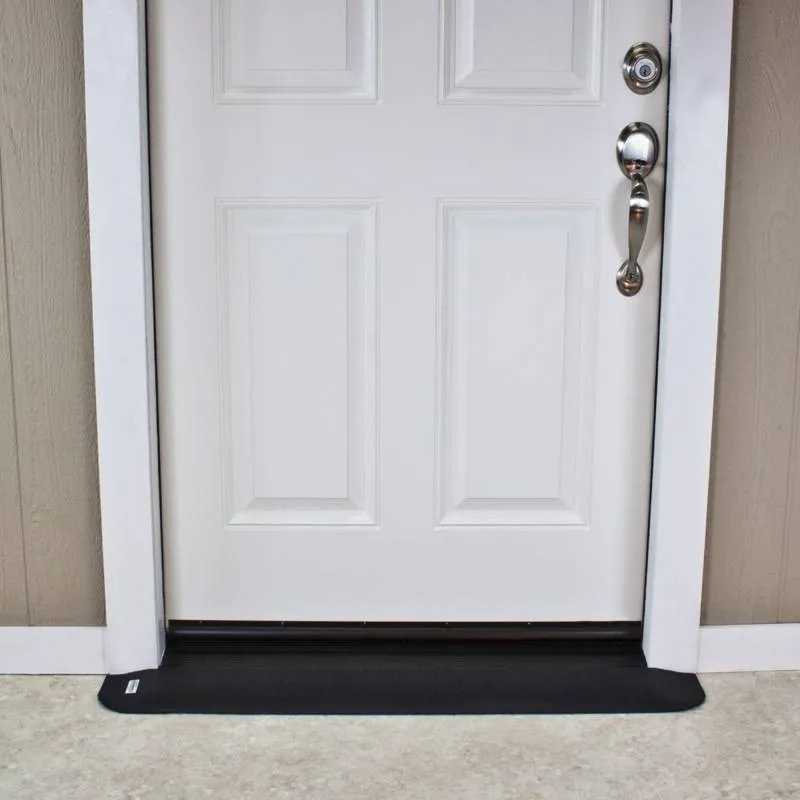

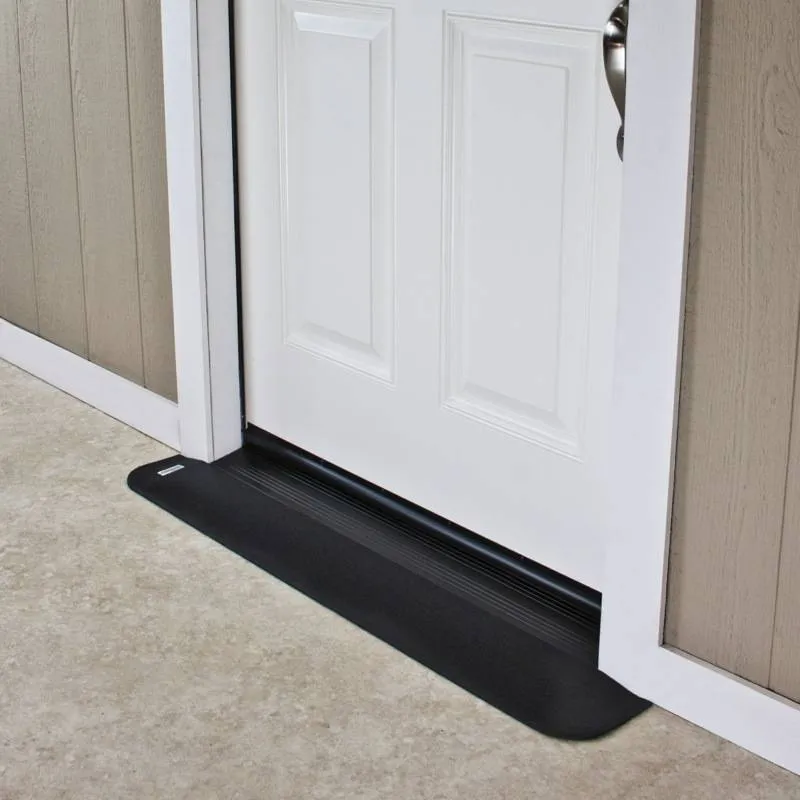

TRANSITION WHEELCHAIR RAMPS
A BEAUTIFUL SOLUTION TO A THRESHOLD PROBLEM

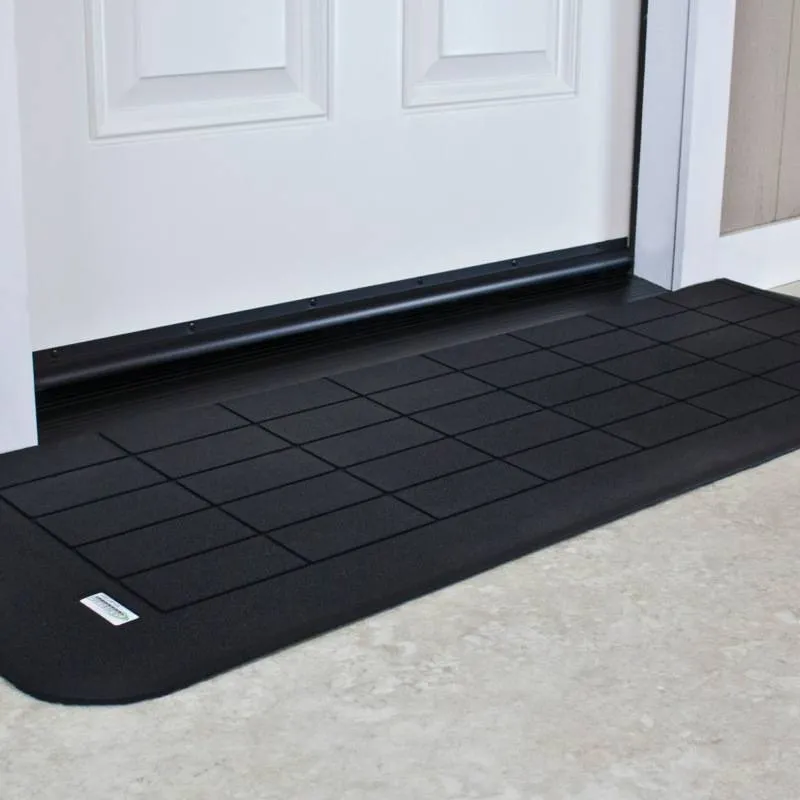

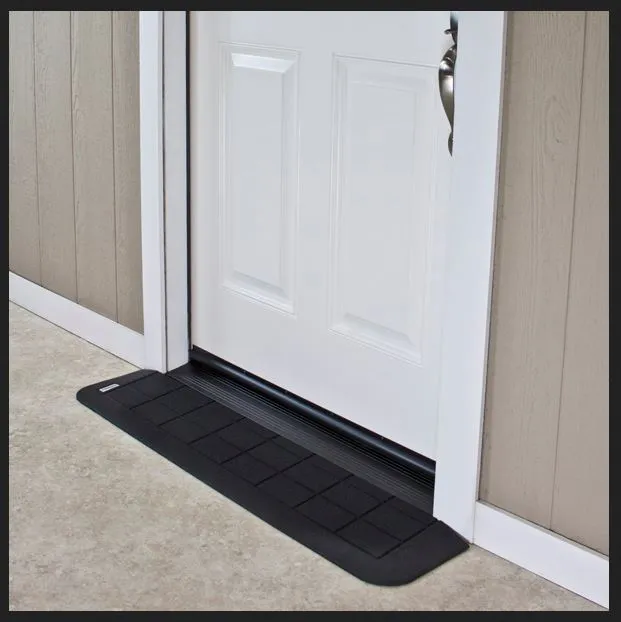

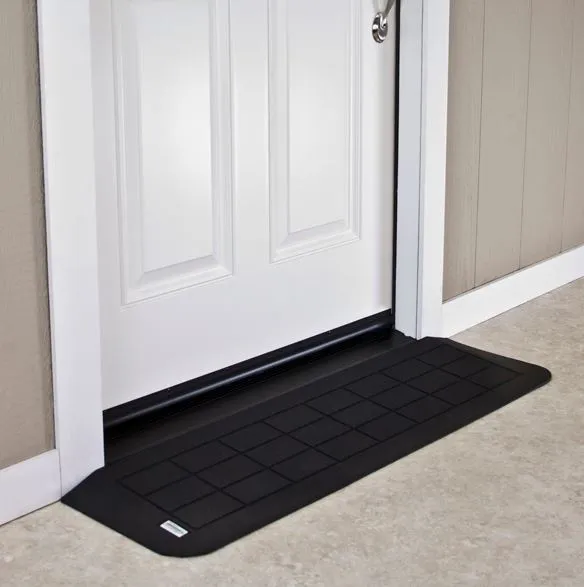

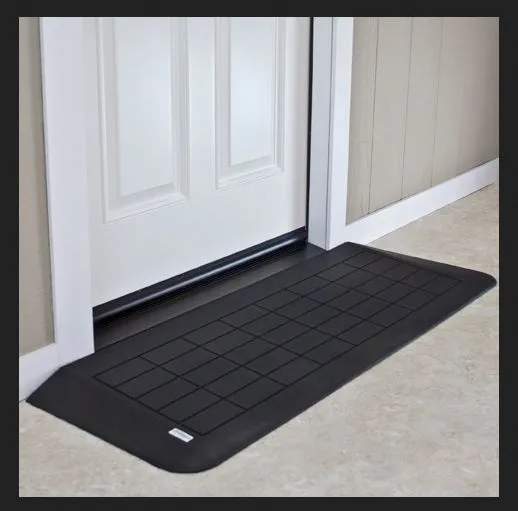

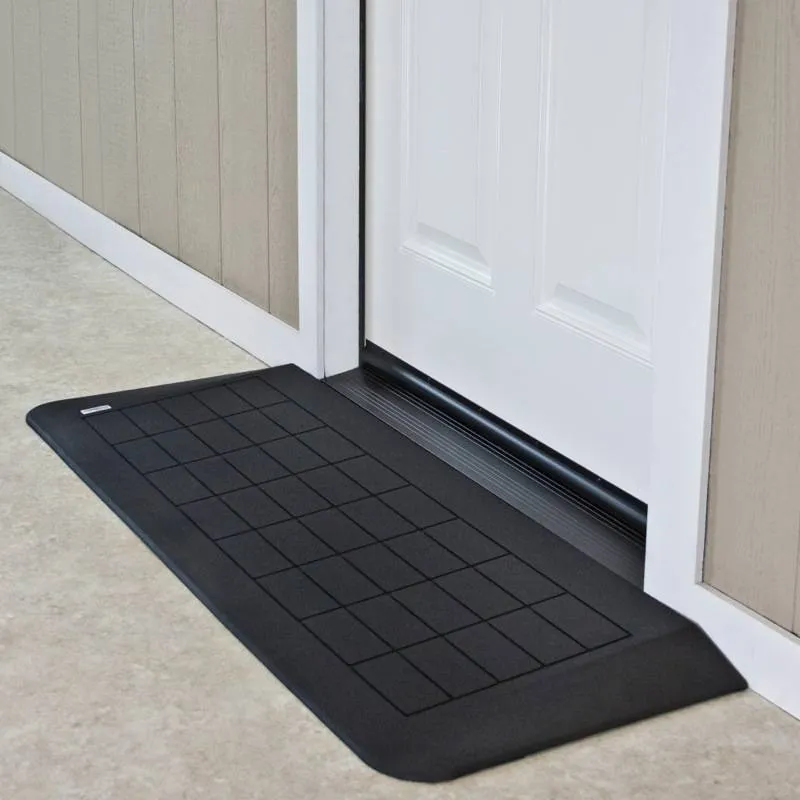

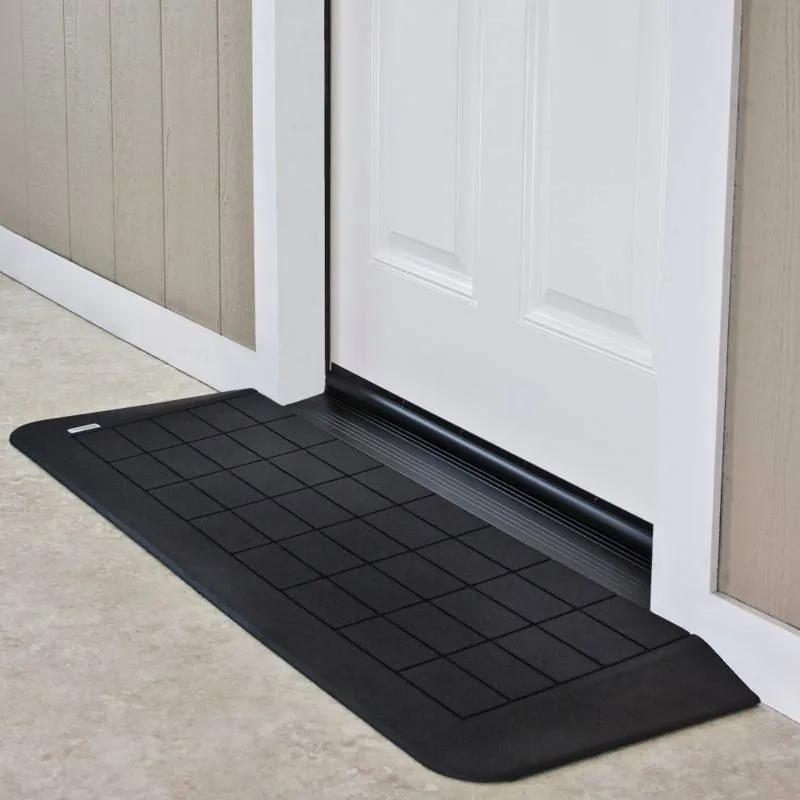

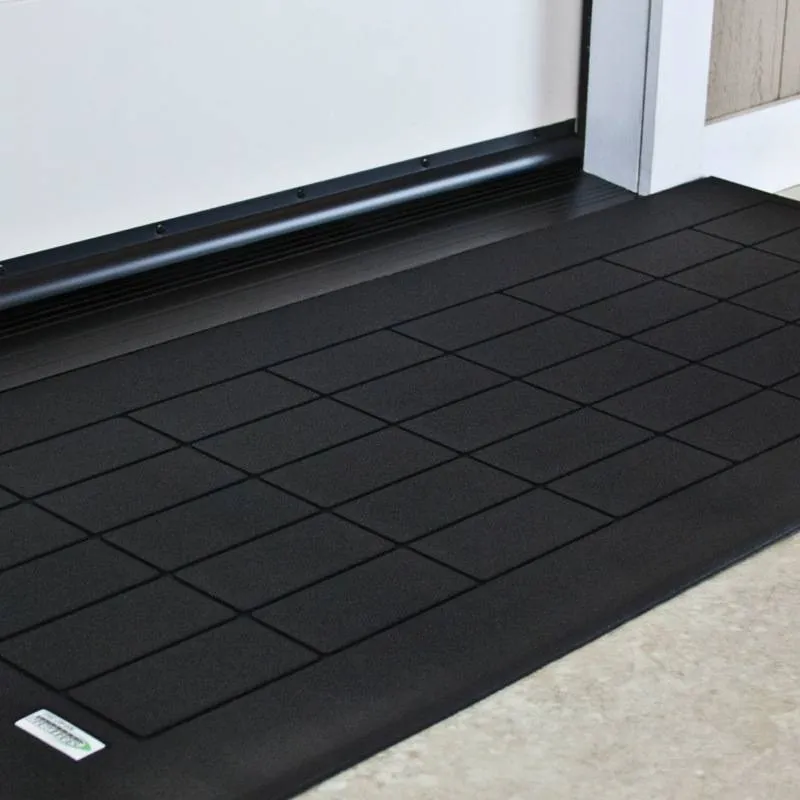

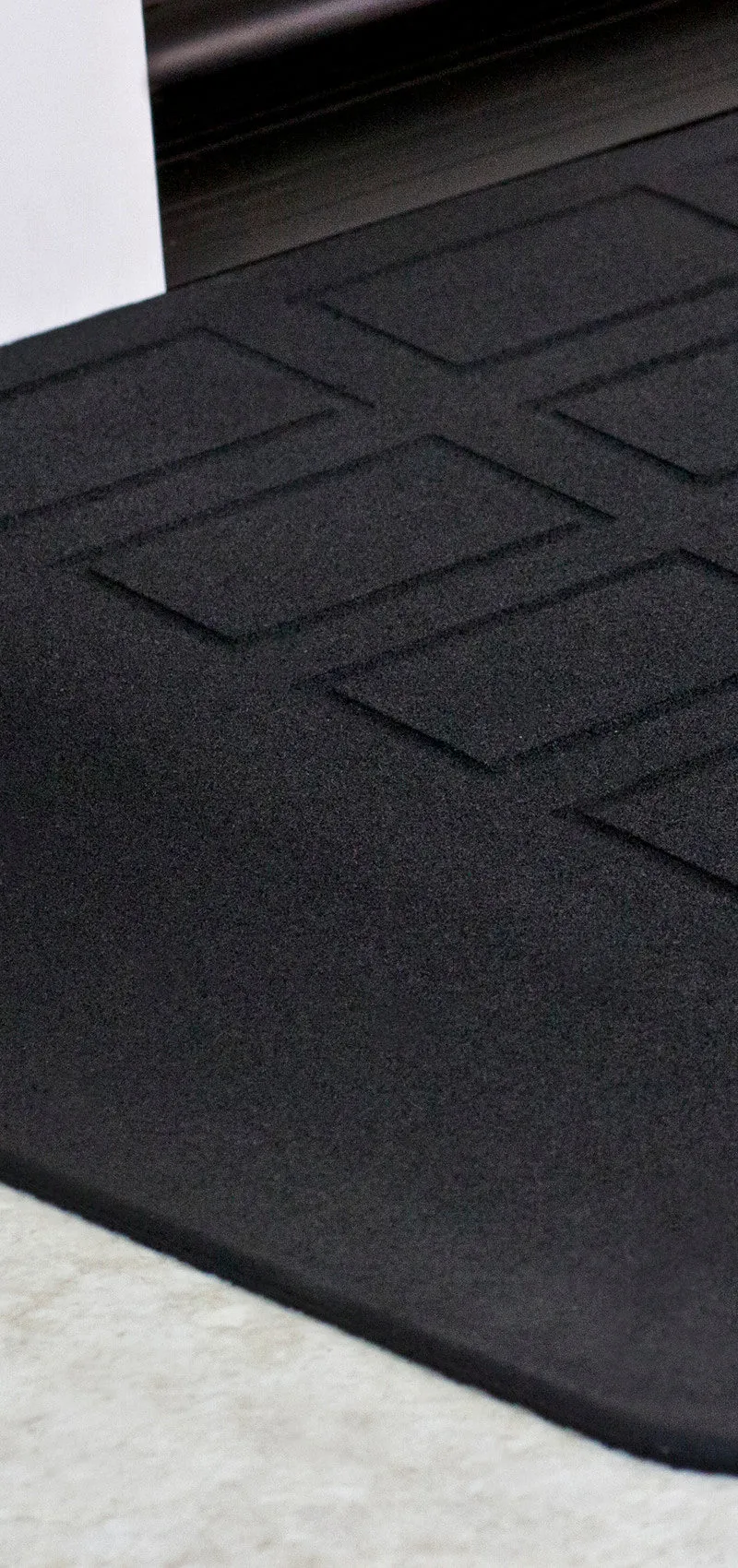

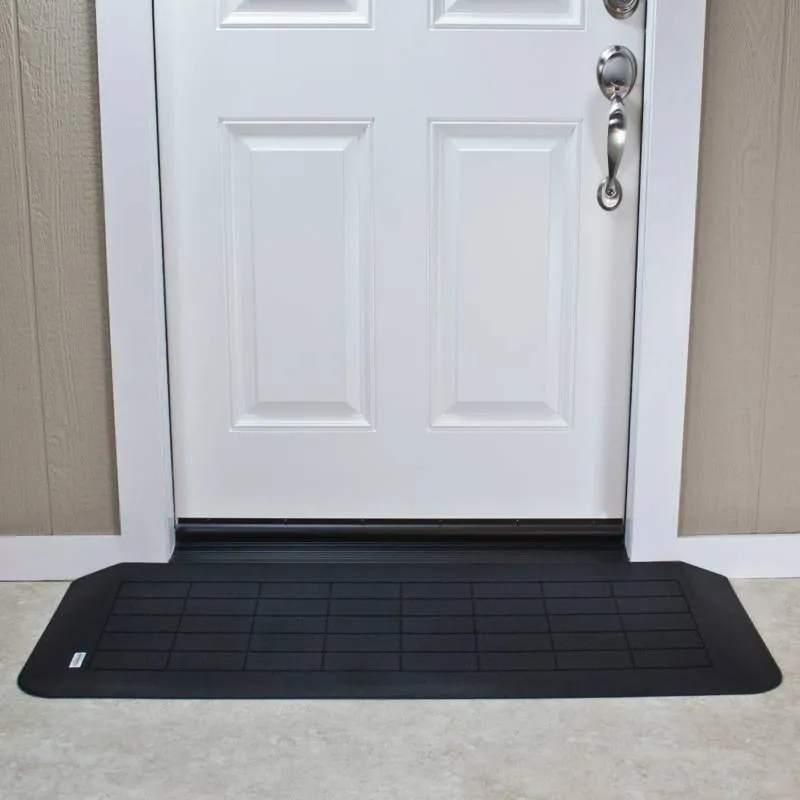

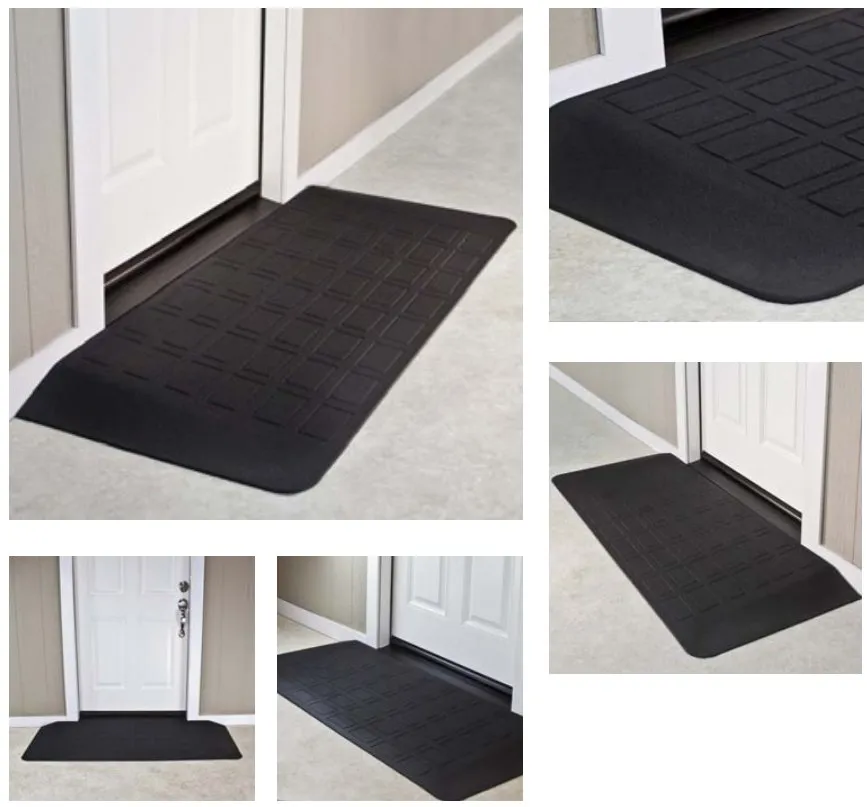

The Transition Wheelchair ramp is an easy solution to solve your Threshold barriers! Our Threshold ramps easily fit in front of your door or any other vertical barrier you might have. These 100% recycled rubber ramps help you effortlessly transition from one height to another. After all, life is better without tripping hazards and hard to access pathways that block wheelchairs from easy travels.
Installation is quick and easy, significantly reducing labor costs. Transitions come with a 10-Year Guarantee ensuring durable and maintenance free use. Our ramps are most often used for door thresholds, sliding glass doors, entry ways, or any path of travel with a vertical barrier. A Transition Ramp can easily be installed on most surfaces including concrete, asphalt, wood, tile and marble. Simply choose the model closest to the height of the transition and the necessary width of access. If you need assistance acquiring these measurements, contact our customer service team and they will find the best solution that fits your specifications.
Specifications:
- Limited Lifetime Warranty
- No load weight limitations
- Molded miter ends
- Made of 100% recycled rubber
- Designed and tested for maximum slip resistance
- Field fitted with simple cutting tools
- Simple installation in 15 to 25 minutes
- No fasteners required for installation
- Foot traffic is quiet and solid

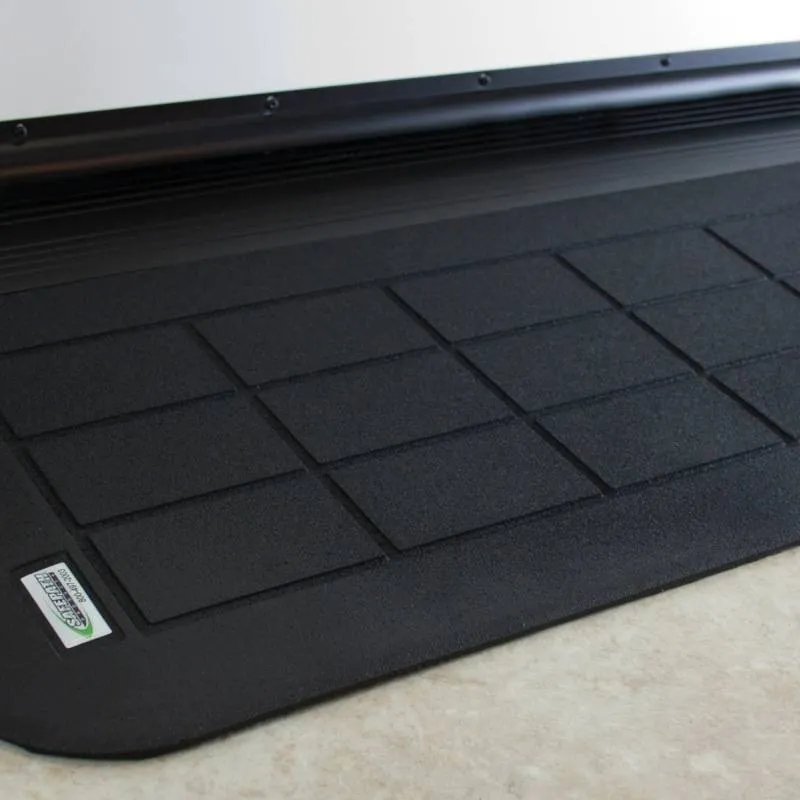

- Slate Transitions only available in black*
- For commercial and residential use
| Item Number | Length | Width | Usable Width | Threshold Height | Weight |
|---|---|---|---|---|---|
| RAEZ0110 | 8 1/8" | 42" | 36 1/4" | 1" Rise | 9 lbs. |
| RAEZ1110 | 12 1/4" | 42" | 36 1/4" | 1 3/8" Rise | 17 lbs. |
| RAEZ1510 | 18 1/8" | 50" | 41" | 1 5/8" Rise | 36 lbs. |
| RAEZ2100 | 24" | 60" | 50" | 2" Rise | 62 lbs. |
*Ramp is only available in black; image colors may vary due to individual monitor display settings.

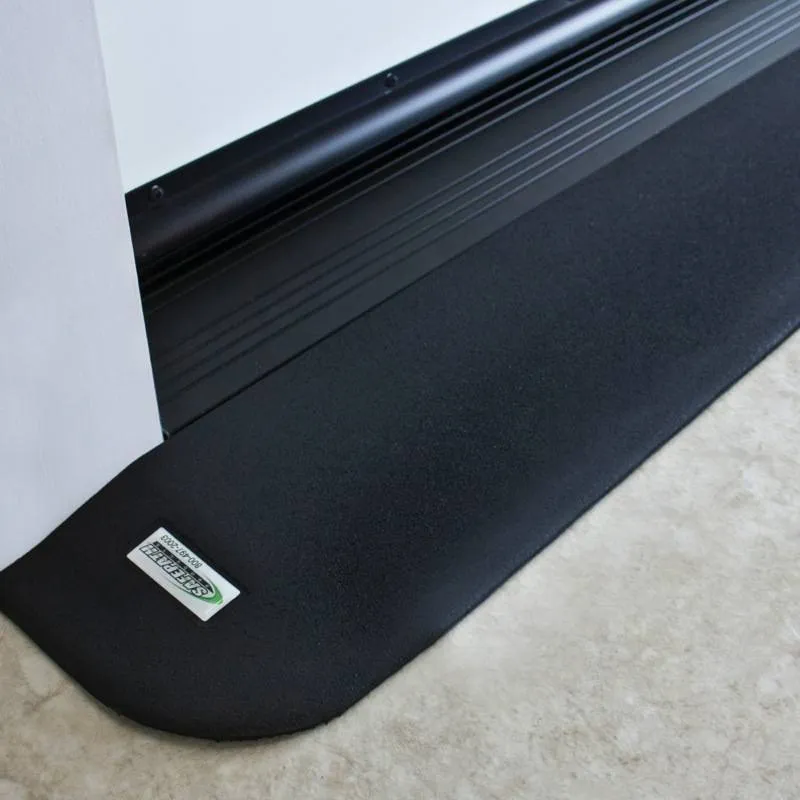

Rubber Threshold - Transition
Specifications:
- Limited Lifetime Warranty
- No load weight limitations
- Molded miter ends
- Made of 100% recycled rubber
- Designed and tested for maximum slip resistance
- Field fitted with simple cutting tools
- Simple installation in 15 to 25 minutes
- No fasteners required for installation
- Foot traffic is quiet and solid

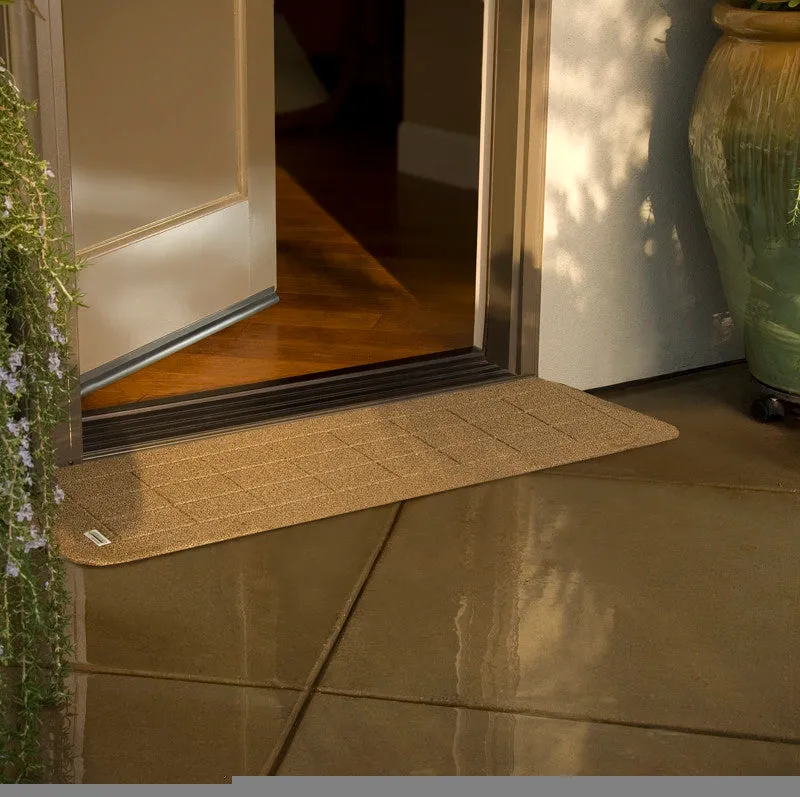

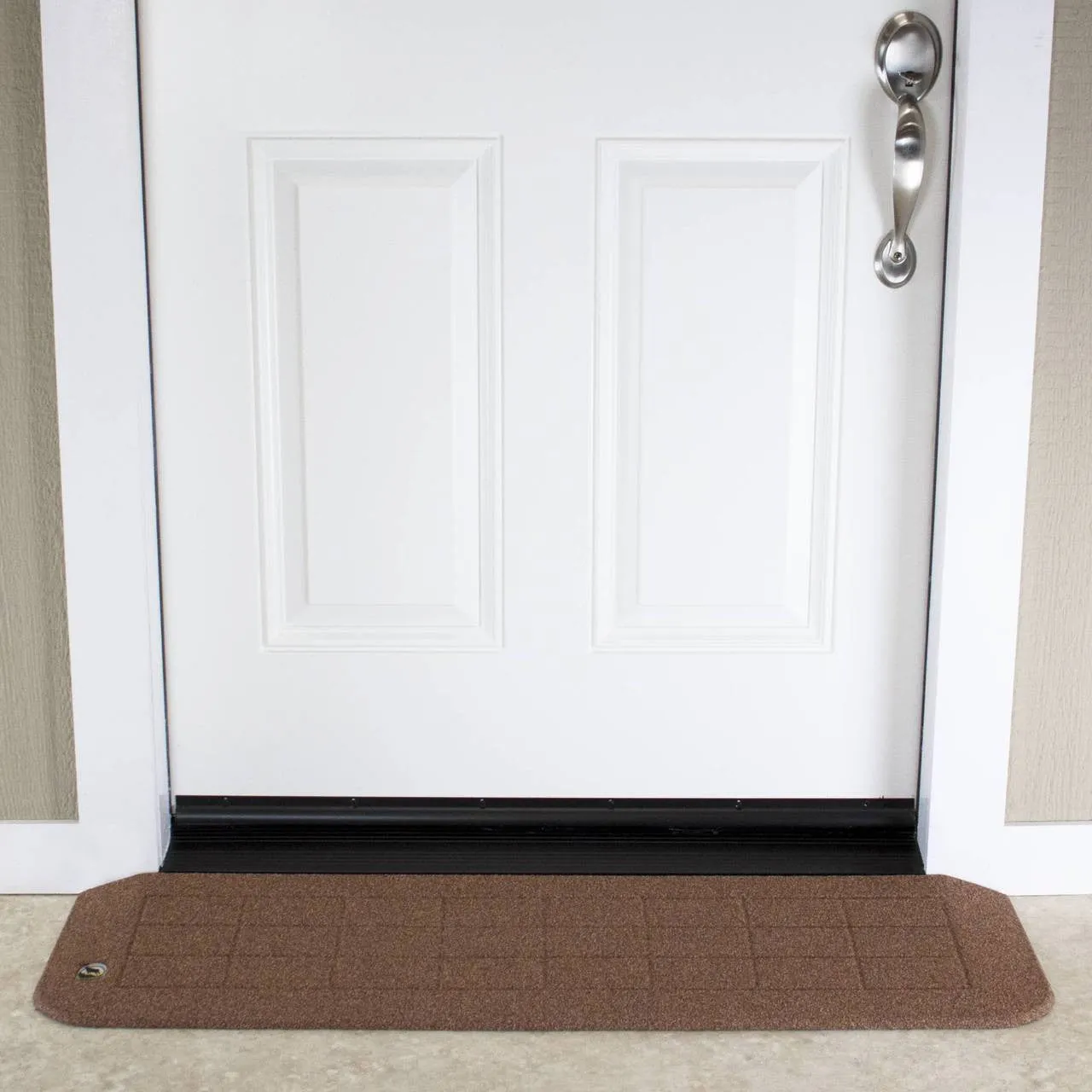

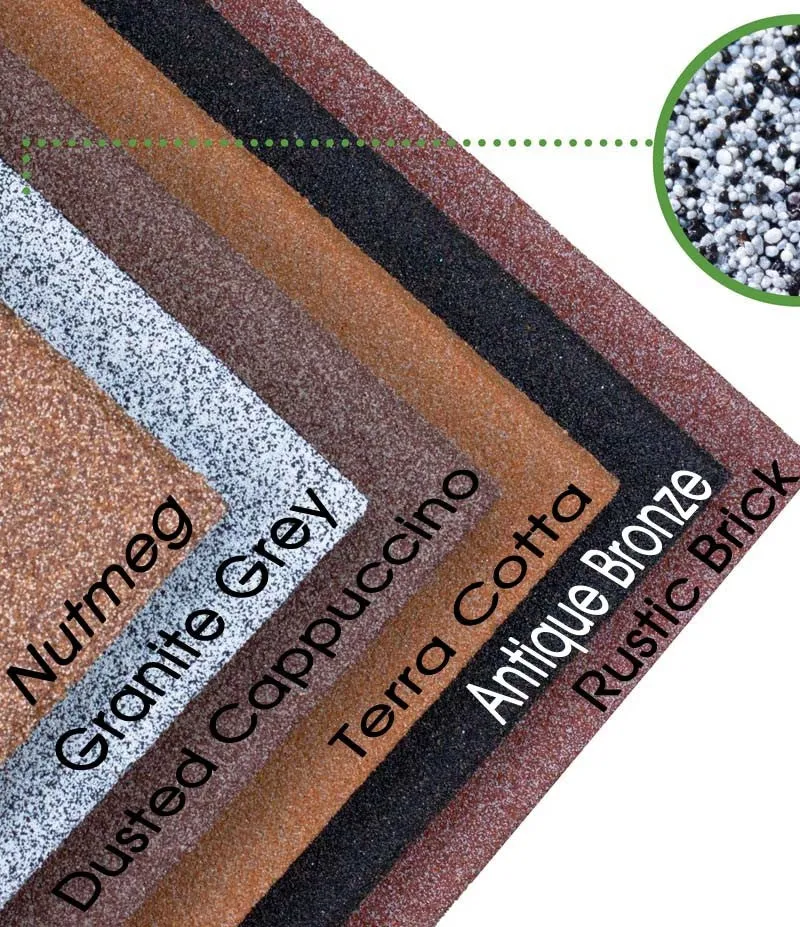

- StoneCap™ Transitions available in Nutmeg or Antique Bronze color
- For commercial and residential use

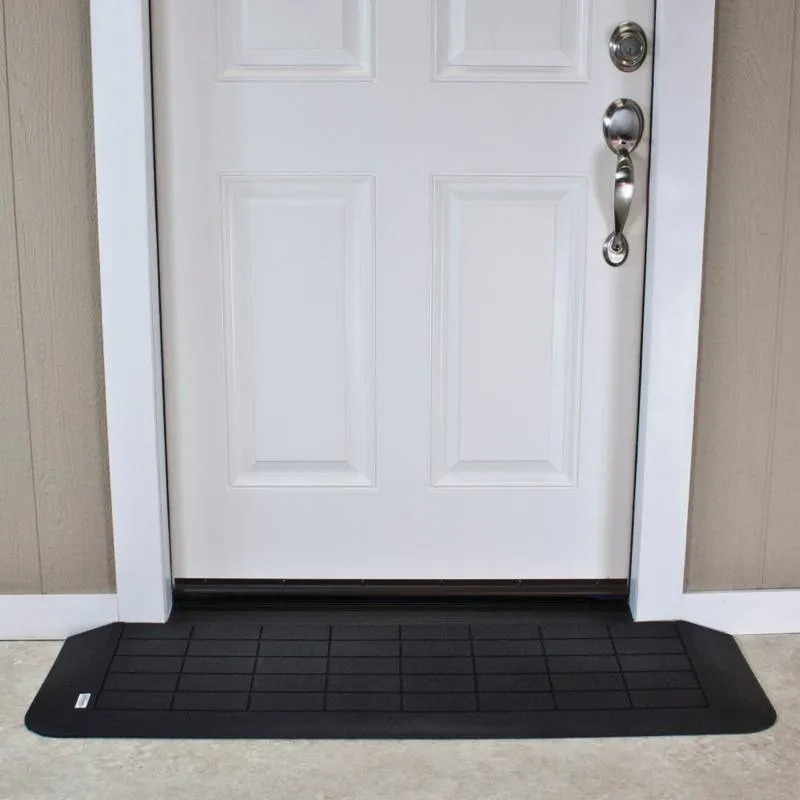

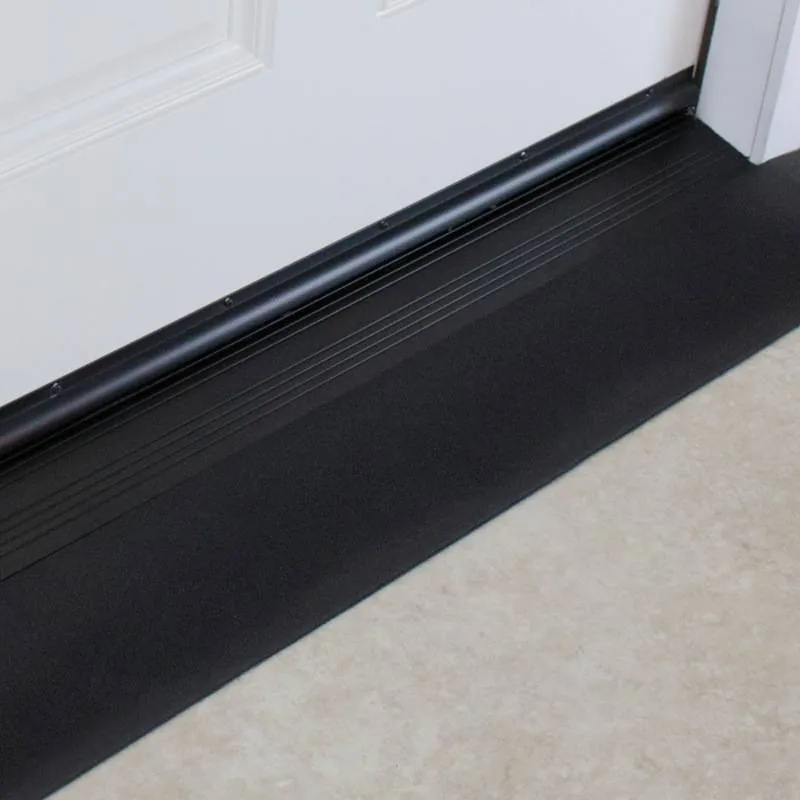

- Grooved surface (pictured) only available on STC1110 and STC1510
| Item Number | Length | Width | Usable Width | Threshold Height | Weight |
|---|---|---|---|---|---|
| STC0110 | 8 1/8" | 42" | 36 1/4" | 1" Rise | 9 lbs. |
| STC1110 | 12 1/4" | 42" | 36 1/4" | 1 3/8" Rise | 17 lbs. |
| STC1510* | 18 1/8" | 50" | 41" | 1 5/8" Rise | 36 lbs. |
*Colors vary slightly due to monitor calibrations.
------------------------------
The slip-resistant surface of the Transitions® Angled Entry Mat is made with 100% recycled rubber and provides a safe transition both indoors and outdoors. It does not interfere with door tracks and is especially convenient for sliding glass doors. It is 36” wide and is available in a 1½ and 2½ inches heights.
| SPECIFICATIONS | THRBE 150-1 | THRBE 250-1 |
|---|---|---|
| Made of 100% recycled rubber | √ | √ |
| Slip-resistant surface | √ | √ |
| Usable size ( H x L x W ) | 1½" x 14" x 36" | 2½" x 25"x 36" |
| Overall size ( H x L x W ) | 1½" x 14" x 40" | 2½" x 25" x 43" |
| Weight ( lbs.)* | 14 | 31 |
| Weight capacity ( lbs.) | 850 | 850 |
| For wheelchairs & scooters | √ | √ |
| Usage guidelines ** | 1½" rise | 2½" rise |
* Weights are approximate and may vary.
** Consult your equipment's owner guide for proper degree of incline. Never exceed its recommendations.
