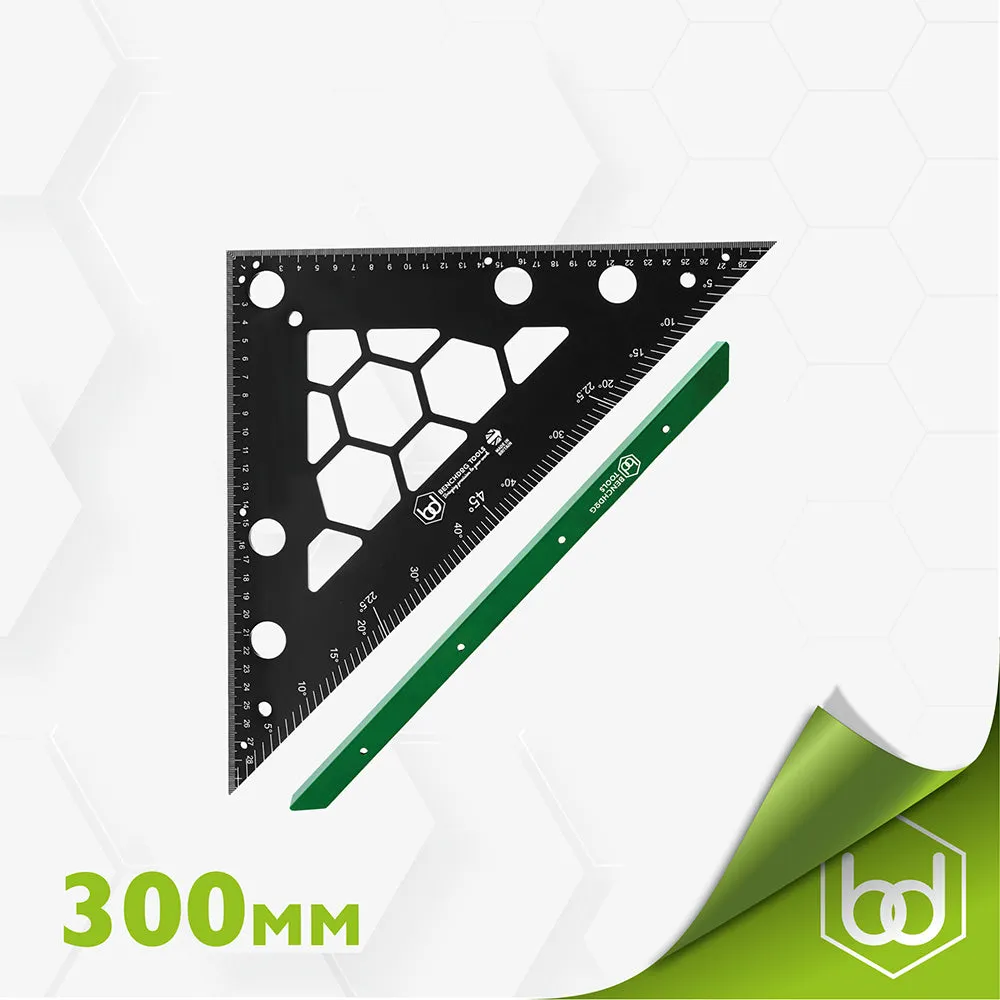

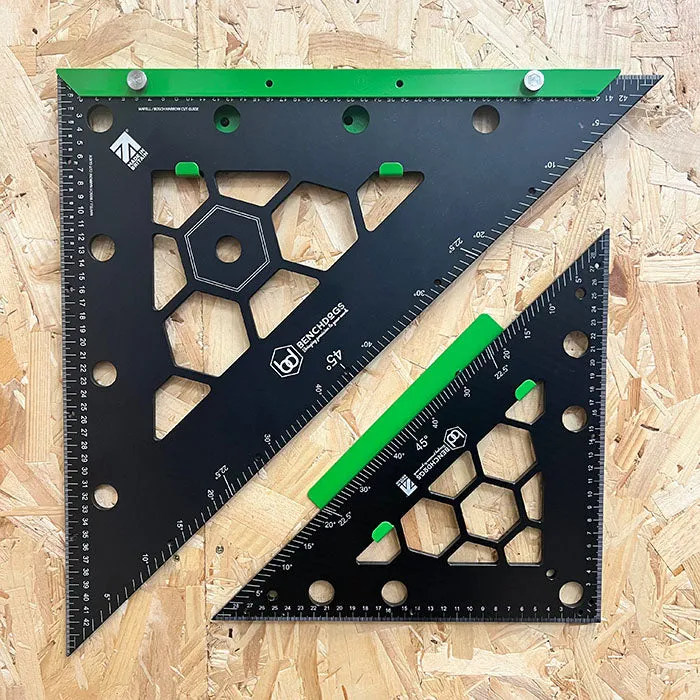

Our Precision Triangle has been one of the most requested products to date and now it has a baby brother. The smaller Precision Triangle is 300mm compared to our 450mm version.
Features Include:

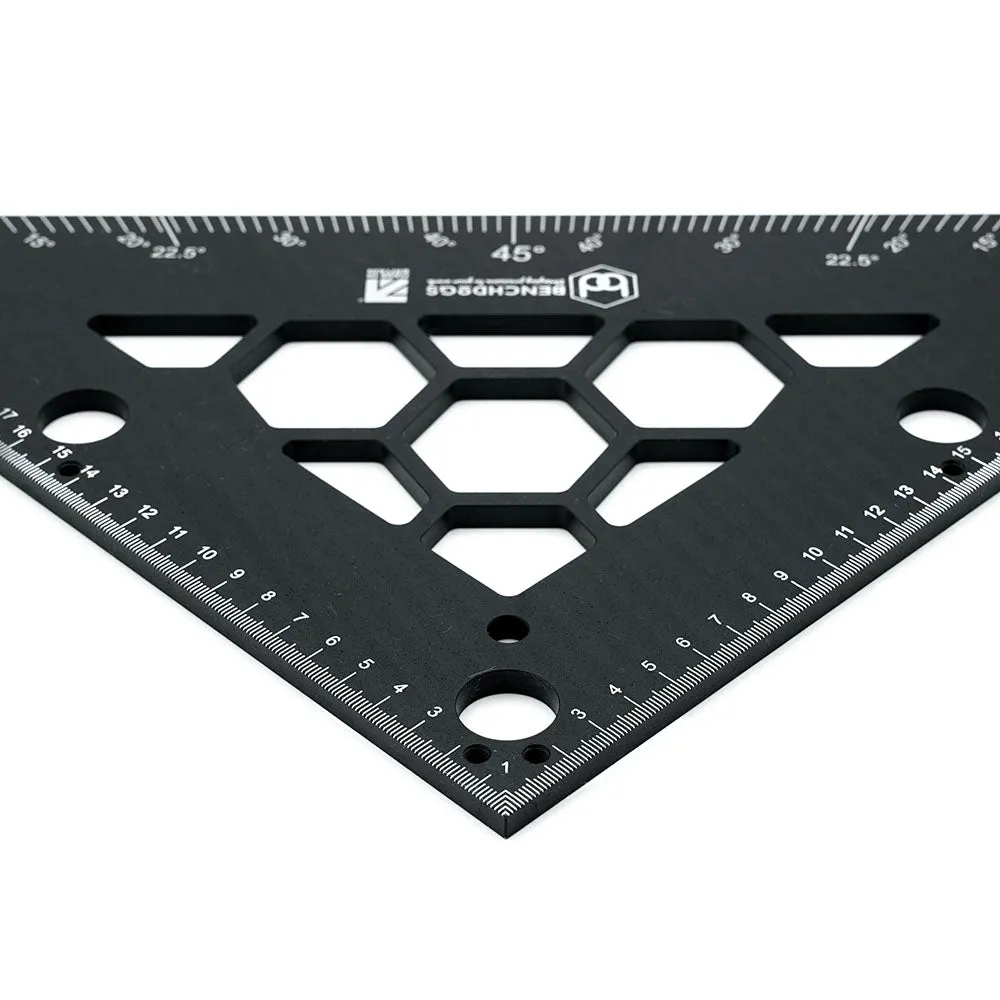

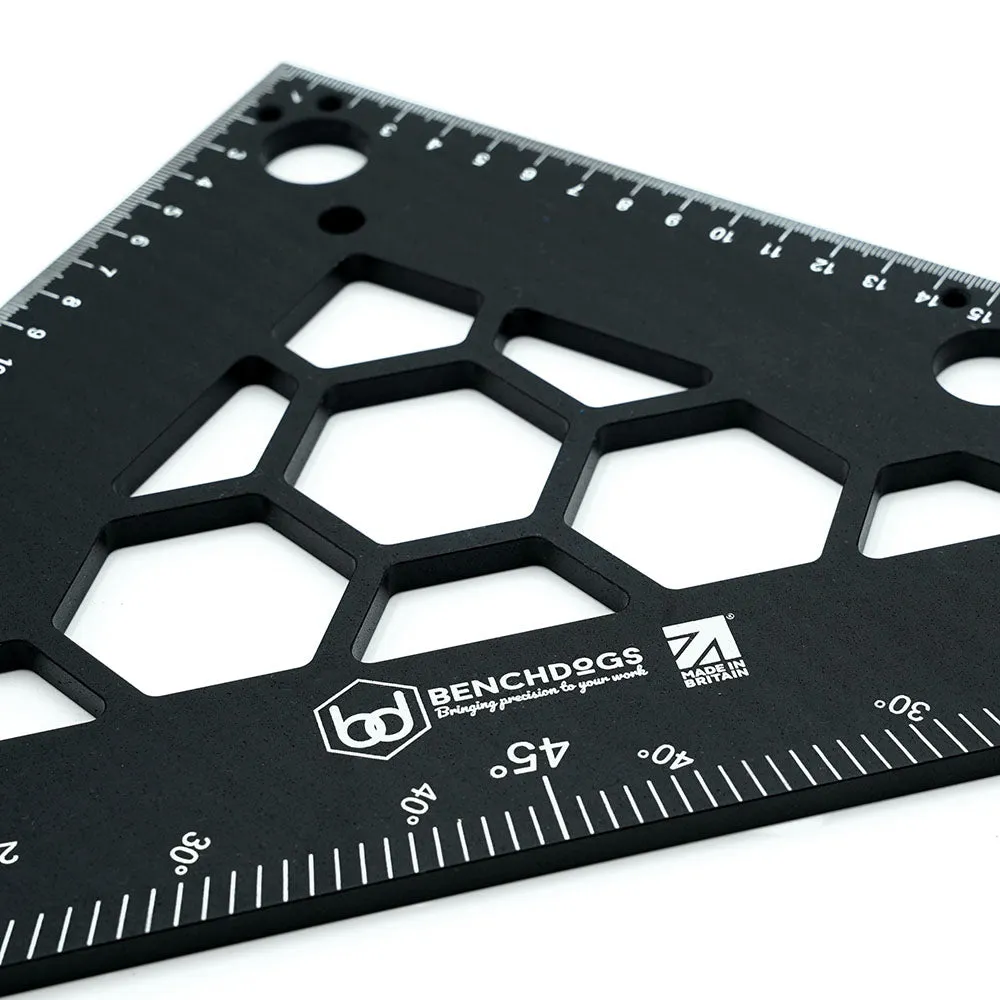

- Marked angle markings, professionally engraved using state-of-the-art laser engraving equipment. All set out at 1-degree increments, with prominent markings at 5, 10, 15, 20, 22.5, 30, 40 and 45.
- Metric Scale laser engraved markings

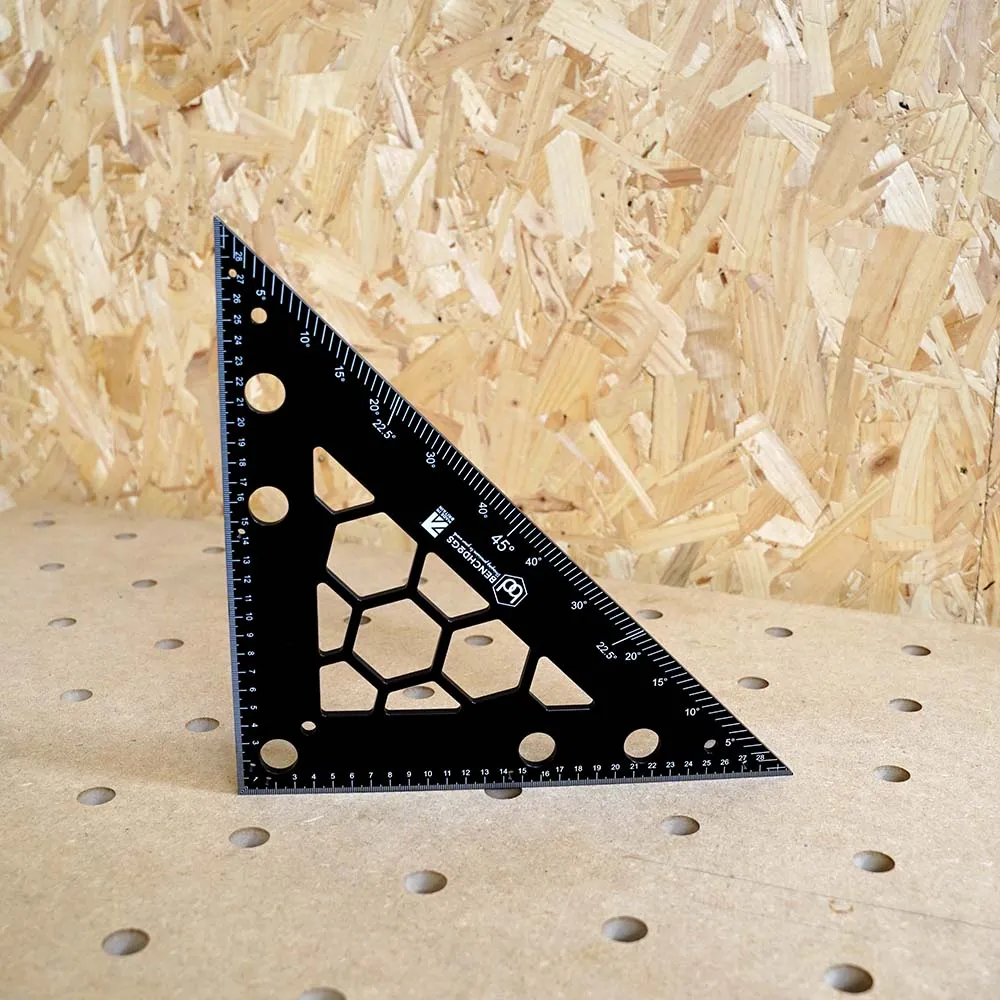

- 20mm set holes at 96mm centres, and 135. for 45-degree placement the standard for MFT tops, ideal for ensuring your fence and track are at a perfect 90 degrees.
- Setting up and edge pins.
- Easy to remove side cheek/foot with thumbscrews, eliminating tools to remove, no more looking for that hex key or screwdriver. The aluminium cheek is set at 228 mm for ease of use and able to be moved to both edges of the triangle.
Accurate within 20 microns as recorded by our CMM machine, each Precision Triangle will be supplied with its own calibration report.
Precision CNC made in the UK with tooling plate aluminium and anodised with a Satin Finish Black finish.
Our large precision triangle is lightweight and has a satin finish. Each edge has metric laser-engraved markings and angled markings for accuracy.
The goal of this product was a practical but elegant design following our hexagon pattern design that is instantly recognisable to our brand.
Contents include
1 x CNC Precision Aluminium 300 Triangle

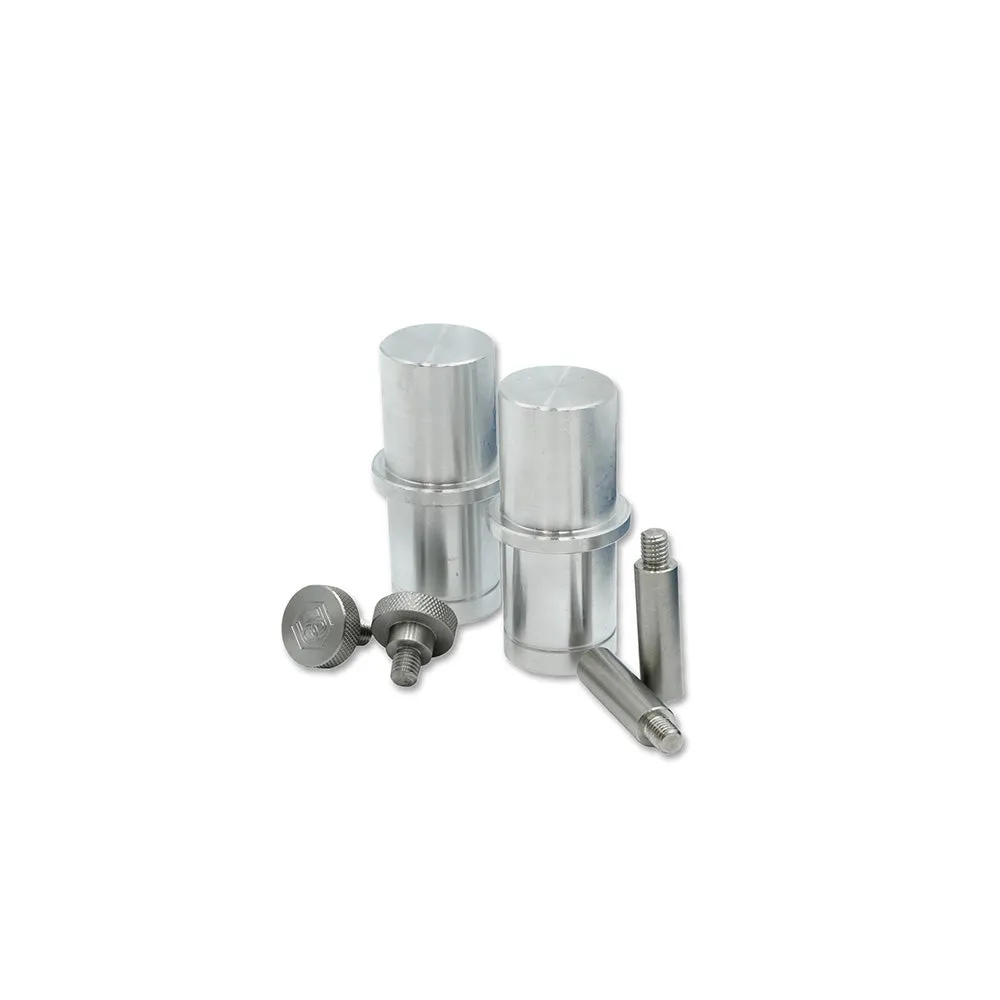

2 x Alignment T Dogs
2 x Setting & Alignment Pins - Stainless Steel
1 x Machined Aluminium Cheek
2 x Stainless Steel Thumbscrews
Our Precision Triangle also comes with a calibration report.

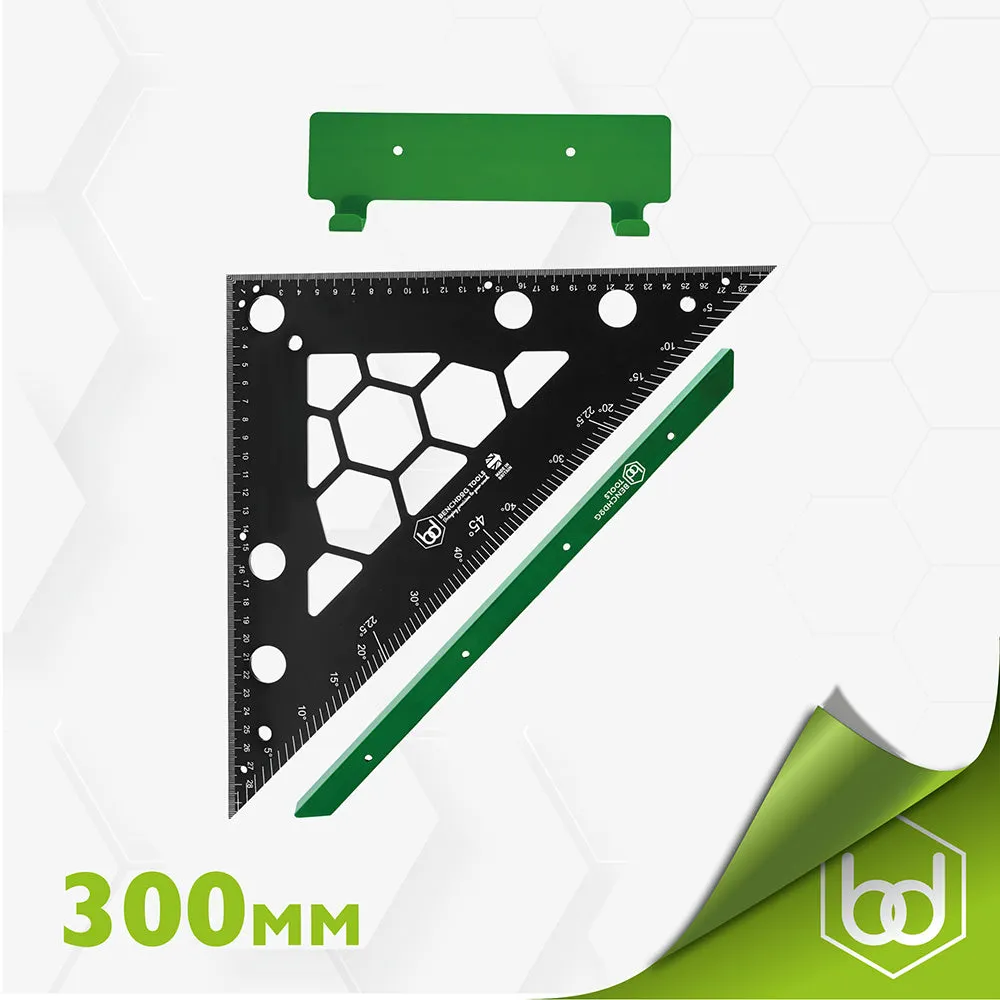

Want to hang your Precision Triangle so it's kept safe and out of the way? Check out our !
